Round 6 into 1 Recessed and surface mouted CCT adjustable 220V
Indoor 18W Plastic Slim Panel
Features:
High quality performance
Famous Led Brand chip to achieve high luminous efficiency, CRI＞80
to provide
Patented Frame Design, Stream-line structure, refined surface
treatment, simple and elegant appearance
High-Quality LGP, laser or silk print for luminous intensity
distribution to ensure high lumen and comfortable natural lighting
Easy surface mounting, recessed mounting and suspending mounting
With switch on back side make the lamp CCT changeable;
Specification:
| MODEL | SHAPE | POWER | VOLTAGE | LUMEN EFF. | DRIVER | PF | Flicker | IP | CRI | BEAM ANGLE | COLOR
TEMPERATURE | MATERIAL
| LAMP SIZE
(mm) | HOLE
SIZE |
|
| PL1902 | Round | 6 | 220-240V | 50-60LM/W | IC Driver | 0.5 | NO Flicker | 20 | 80 | 120° | WW/NW/CW CCT Change | PC | Φ115*32 | Φ105 |
| PL1902 | Round | 12 | 220-240V | 60-70LM/W | 0.5 | 20 | Φ170*32 | Φ155 |
| PL1902 | Round | 18 | 220-240V | 70-80LM/W | 0.5 | 20 | Φ220*32 | Φ205 |
| PL1902 | Round | 20 | 220-240V | 70-80LM/W | 0.5 | 20 | Φ240*32 | Φ225 |
| PL1902 | Round | 24 | 220-240V | 60-70LM/W | 0.5 | 20 | Φ240*32 | Φ225 |
Description:

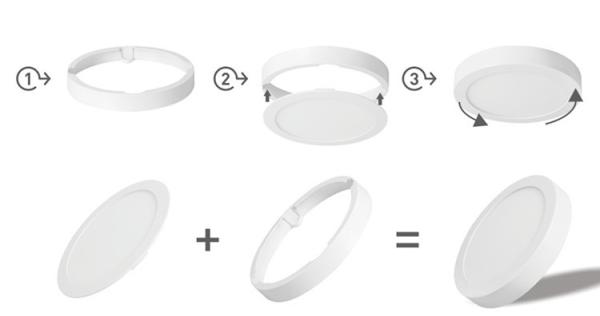

The conventional installation of small panel light includes
recessed and ceiling mounted. In order to meet different consumer
needs, our customers often have to prepare a large amount of
inventory. This 2 in 1 LED small panel light solves the inventory
problem well, helps customers reduce inventory pressure and reduce
capital pressure. Further more, for small panel light with low
power on the market, such as 6W, the luminous efficiency can only
reach 50lm/W, while this LED 2 in 1 small panel light can reach
60lm / W, and 12W can reach 80lm / W.
Product overview:
Application:
Panel light is widely used in living room.
FAQ
Round 6 into 1 Recessed and surface mouted CCT adjustable 220V
Indoor 18W Plastic Slim Panel
Q1. Can I have a sample order for panel light?
A: Yes, we welcome sample order for testing and quality checking.
Mixed samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for Sample preparing ,45 working days for mass
production.
Q3. Do you have MOQ for batten light order?
A: MOQ 1000pcs, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive.
Airline and sea shipping also optional.
Q5. How to proceed an order for panel light?
A: Firstly let us know your detail requirements.
Secondly We quote according to your requirements.
Thirdly customer confirms the samples and arrange deposit for
formal order. Then we arrange the production.
Q6. Is it OK to print my logo on sticker of panel light product?
A: Yes. Please send us your design.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty.
