Aluminum PIR Motion Sensor angel adjustable touch mode silver LED
linear light
Features:
LED cabinet lighting kit with sensor switch;
IR sensor function, two modes in one(touch mode and door mode)
PIR motion sensor function the detecting angle can be adjusted
Touch switch function,touch the point to switch
Specification:
LS27 series | |
Material | Aluminum + PC |
Parts | Screws |
Light Source: | High brightness SMD2835 LED |
Operating Temperature: | -20°C to 45°C - Indoors |
Warranty: | 2 years with proper installation |
Installation: | 2pcs M2.5 screws allows easy installation |
Ingress Protection Grade: | IP20 |
| Model | Size | Power | Voltage | Beam Angle | Lumen(lm) |
| LS27-300 | 28.9x9.6x300 | 3 | DC 12V | 104° | 233 |
| LS27-458 | 28.9x9.6x458 | 4 | DC 12V | 104° | 324 |
| LS27-500 | 28.9x9.6x500 | 5.5 | DC 12V | 104° | 446 |
| LS27-610 | 28.9x9.6x610 | 6.5 | DC 12V | 104° | 527 |
| LS27-915 | 28.9x9.6x915 | 9.5 | DC 12V | 104° | 762 |
| LS27-1000 | 28.9x9.6x1000 | 10.5 | DC 12V | 104° | 834 |
Description:

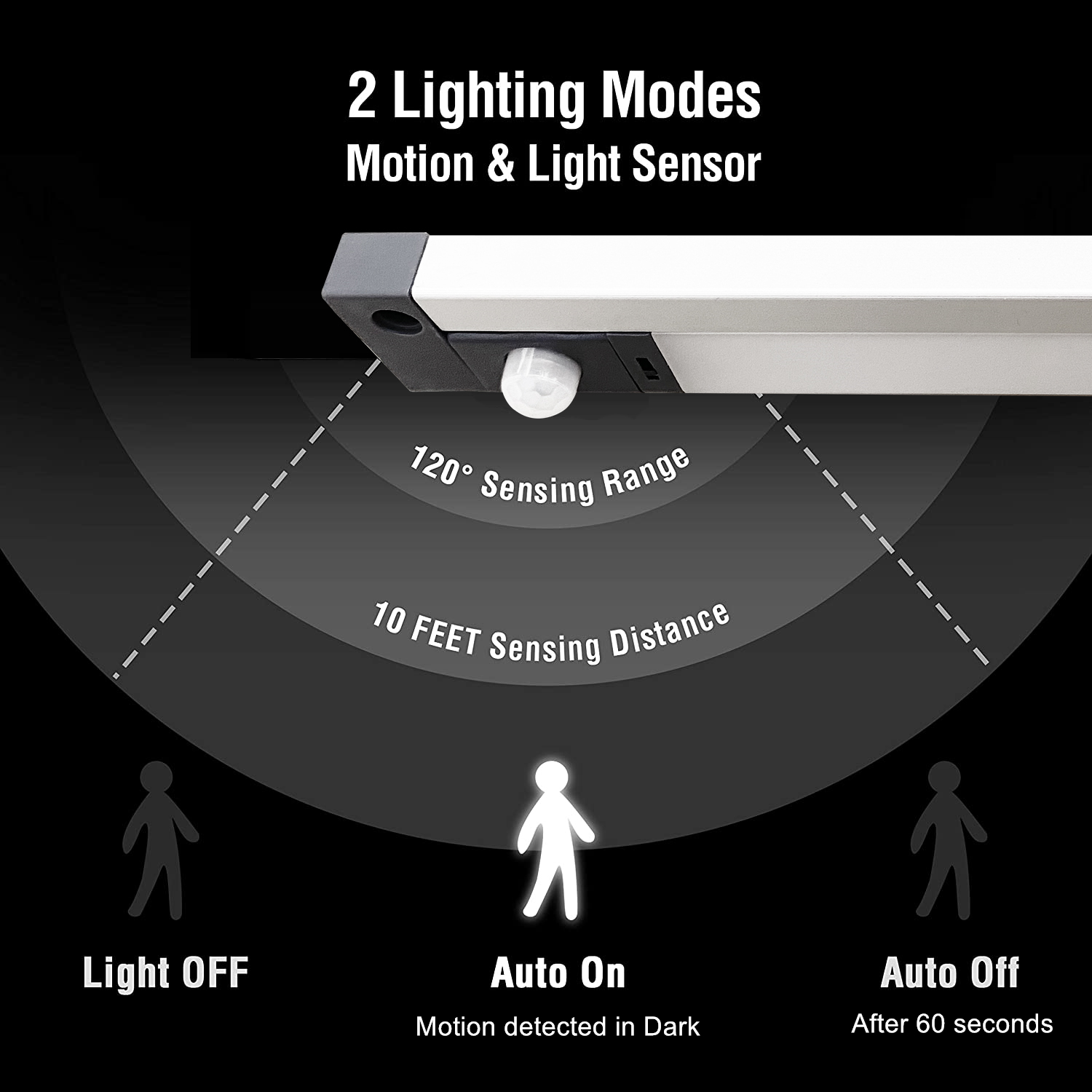

Discover Touch-Free LED cabinet lighting
(1) with an PIR sensor switch inside and when people near to the
light, the light will turn on, when people leave the room, the
light will continue lighting 1min then turn off.
0-90°rotated
(2) The detection distance is≤3m and default detection time is
1min, the detection time can be extended by the user.
(3) The PIR rotation angle can be adjusted (0-90°).So it can adjust
the sensor distance.
(4) PIR as a OFF mode, it is a usual function
(5) 2 ways to connect: 1) use the connector to make it long; 2) use
the connect cable;
(6) Different length available for your choice;
(7) It can be installed by yourself in seconds. All installation
accessories included, two flexible mounting ways:
Double sided tape options ( no damage to the cabinet ) or Simple
screws method
Application:
This cabinet can be widely used in kitchen, living room, cabinet
and other desired places;
FAQ
Aluminum PIR Motion Sensor angel adjustable touch mode silver LED
linear light
Q1. Can I have a sample order for cabinet light?
A: Yes, we welcome sample order for testing and quality checking.
Mixed samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for Sample preparing ,45 working days for mass
production.
Q3. Do you have MOQ for cabinet light order?
A: MOQ 1000pcs, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive.
Airline and sea shipping also optional.
Q5. How to proceed an order for cabinet light?
A: Firstly let us know your detail requirements.
Secondly We quote according to your requirements.
Thirdly customer confirms the samples and arrange deposit for
formal order. Then we arrange the production.
Q6. Is it OK to print my logo on sticker of cabinet light product?
A: Yes. Please send us your design.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty.
