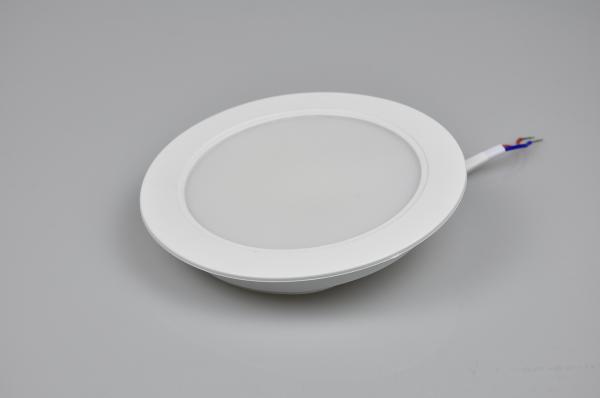

Waterproof CCT adjustable re
cessed and surface mounted IP20 18W panel light
Features:
Suitable for many application;
Use high qualtiy material, surable, safe and reliable;
High brightness, no dak areas;
One series contain many powers, size;
With the frame, recessed mouting change to surface mounting;
IP20 and IP54 for optional;
Plastic housing makes prices competitive;
Specification:
| Model | Body Materials | Drive | CRI (Ra) | Power Factor | Real Watts ±10% | IP | Beam Angle | Color Temperature | Volts | Life time | Lamp Size (mm) | Cut hole size(mm) |
|
| PL-XXR | Plastic | IC | >80 | >0.5 | 5W | IP20 | 120 | CCT adjustable | 170-260V | 25000H
(2 years guarantee) | Φ95×H26mm | Φ75-90mm |
| IC | >80 | >0.5 | 9W | IP20 | Φ120×H26mm | Φ100-115mm |
| IC | >80 | >0.5 | 12W | IP20 | Φ145×H26mm | Φ125-140mm |
| IC | >80 | >0.5 | 18W | IP20 | Φ170×H26mm | Φ150-165mm |
| IC | >80 | >0.5 | 24W | IP20 | Φ225×H26mm | Φ205-220mm |
| PL-XXS | Plastic | IC | >80 | >0.5 | 5W | IP20 | 1200 | CCT adjustable | 170-260V | 25000H
(2 years guarantee) | Φ95×H26mm | Φ75-90mm |
| IC | >80 | >0.5 | 9W | IP20 | Φ120×H26mm | Φ100-115mm |
| IC | >80 | >0.5 | 12W | IP20 | Φ145×H26mm | Φ125-140mm |
| IC | >80 | >0.5 | 18W | IP20 | Φ170×H26mm | Φ150-165mm |
| IC | >80 | >0.5 | 24W | IP20 | Φ225×H26mm | Φ205-220mm |
Description:
This panel light is with our own mould, with execent design
conception. It has recessed type, and with the frame, it will be
surface mounted type, it helps customer to reduce the goods in
stock much. It has a switch external, and with switch, can choose
the color temprature WW or NW or CW.Power range from 5W to 24w.
Product overview:
Application:
Panel light is widely used in living room.
FAQ
Waterproof CCT adjustable recessed and surface mounted IP20 18W
panel light
Q1. Can I have a sample order for panel light?
A: Yes, we welcome sample order for testing and quality checking.
Mixed samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for Sample preparing ,45 working days for mass
production.
Q3. Do you have MOQ for batten light order?
A: MOQ 1000pcs, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive.
Airline and sea shipping also optional.
Q5. How to proceed an order for panel light?
A: Firstly let us know your detail requirements.
Secondly We quote according to your requirements.
Thirdly customer confirms the samples and arrange deposit for
formal order. Then we arrange the production.
Q6. Is it OK to print my logo on sticker of panel light product?
A: Yes. Please send us your design.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty.
